With our systems reversible wall cladding can be built.
Different, coordinated systems for different requirements.
Designed primarily for indoor use.
Can be used in new buildings and for existing buildings.
Free design with numerous different, suitable materials.
Das Design kann geändert werden.
Walls can also be insulated in the interior afterwards.
Installations can be installed on / in front of the raw wall and no longer have to be left intricately in the wall.
The wall spacing is variable and can be selected according to the requirements.
Installations for water / waste water, electricity, ventilation ... remain accessible.
Installations for e.g. Sockets, TV connection ... can also be added later.
A substructure can be installed for fastening loads. Due to the revision capability of the veneering system, the substructure can be modified or supplemented later.
In case of fire protection requirements, the load securing system can be integrated into the holding system.
With the panel weight vertical load securing device, the height of the elements to be held can be adjusted and fixed.
In order to prevent improper handling, storage, use, as well as avoidable dangers, the ReVisionSys® system may only be handled by specially trained personnel.
Systembeschreibung
System description

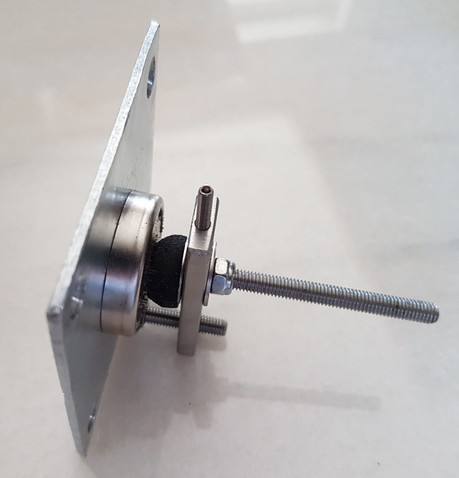

The magnetic base plate must have a force-fit connection to the element to be supported.
When using the fall protection, the mandrel (or the countersunk screw) must be screwed flush to the surface in the bore of the base plate before attaching the base plate. The countersunk screw must protrude at least 6 mm beyond the hole of the fall protection in the pre-assembled system on the side view with the full diameter. The revisionability of the element to be held is retained. The elements can be pulled off to the front.
With the fall protection, the element to be held can be adjusted in height and fixed in its altitude.
The strength of the magnet can be selected depending on the requirement.
The head of the countersunk screw to fasten the ring magnet sits recessed and movable in the ring magnet. With the screw connection, the hardness of the buffering and the mobility of the ring magnet can be adjusted. Due to the mobility, the ring magnet can align itself to a certain extent on the base plate in order to adhere as best as possible.
At the ring magnet axially run trough countersunk screw, the magnet holding system
• can be attached directly to the ground,
• or a secondary anchor can be screwed on
• or by means of a sleeve and a threaded rod or screw the screwing can be extended
• The holding system is adjustable in its position.
