ReVisionSys > wall panels
1. Panel boards on the back with Z-strut and ReVisionSys base plates. The upper two base plates with retaining pin.
2. Panel element made of coated MDF or plywood boards 5x 2600x150mm element 2600x900 mm
3. Aluminum substructure with multiply glued plywood crossbar. Threaded sleeves recessed at the back. ReVisionSys mounts screwed in. The upper two brackets with height-adjustable fall protection.
4. The panel element clicked on the ReVisionSys brackets.
5. Further ReVisionSys mounts screwed in and panel elements clicked on.
details pane

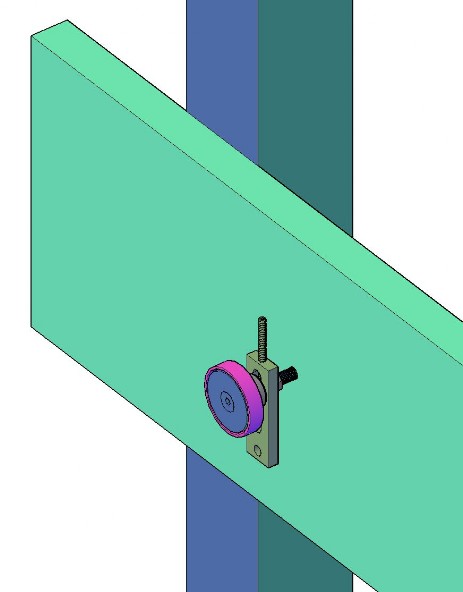

Cross bracing with
Base plates and retaining pin
details pane

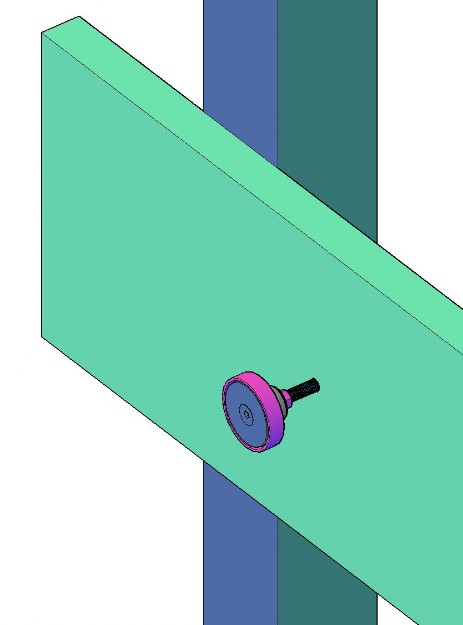

Cross bracing with
Base plates without retaining pin
Detail ReVisionSys
Magnetic mechanical holding system
Detail ReVisionSys
Magnetic mechanical holding system
