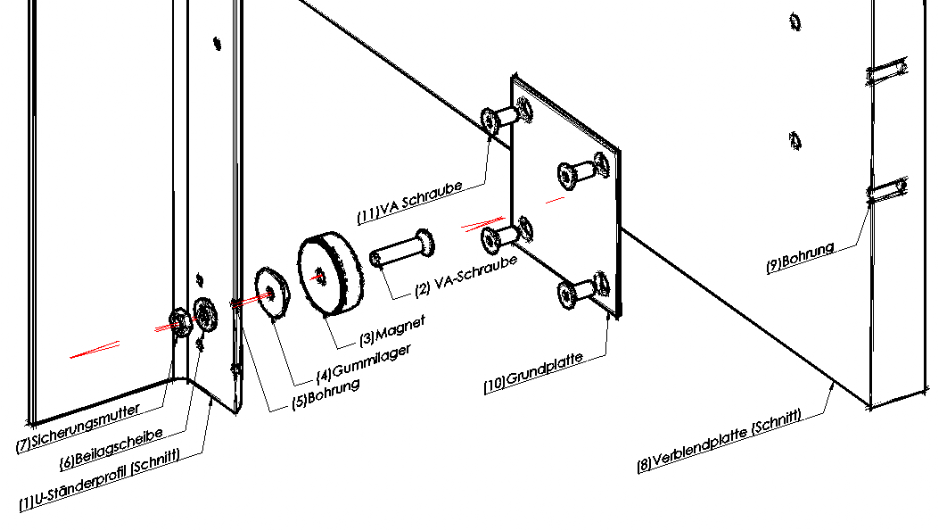

ReVisionSys® on a rail substructure

The ReVisionSys® base plate (10) is screwed on the back of a facing panel.
The magnet (3) holds the facing plate, the positioning being fexiebel. The strength of the magnet can be selected depending on the load to be held.
The screw (2) connects the magnet with the rubber bearing and the substructure.
- The support system used here was an aluminum U-rail substructure.
ReVisionSys auf einer Schienen Unterkonstruktion
