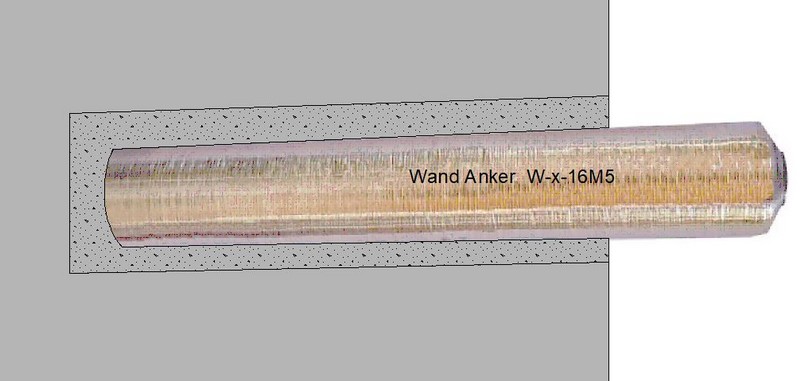

wall anchor

Wall integration depth B25 Load-dependent, min. 50 mm
Wall mounting depth MGIII Load-dependent, min. 80 mm
Embedment depth and load distributor support as required.
Depending on the load transfer and the ground.

Projection from the wall to the back of the plate
Without fall protection at least 25 mm,
with fall protection minimum distance 35 mm

Distance between anchor leading edge to the back of the plate
30 to 40 mm (+/- 5 mm later adjustable)
