Wall anchor
U profile
U-Anker
Artikel
U-Anker

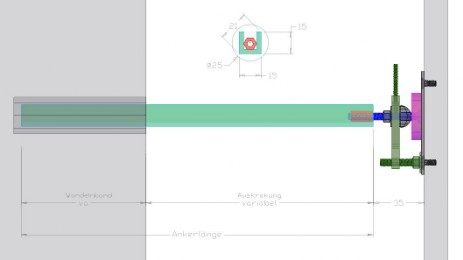

Wall integration depth B25 min. 80 mm
Wall integration depth MGIII min. 125 mm
Projection, or anchor length as needed
Anchor Cross section after overhang and load
Projection from the wall to the plates back
Minimum distance 70 mm
Distance between anchor leading edge to plate rear
30 to 40 mm (+/- 5 mm later adjustable)
Artikel
Artikel Nr. Länge-U-15-15-15-1.5-VA
Wandbohrung D25 mm
Artikel Nr. Länge-U-20-20-20-1.5-VA
Wandbohrung D32 mm
Artikel Nr. Länge-U-25-25-25-1.5-VA
Wandbohrung D40 mm
Artikel Nr. Länge-U-30-30-30-3-VA
Wandbohrung D48 mm
Artikel Nr. Länge-U-35-35-35-3-VA
Wandbohrung D55 mm
